Assignment 2 - Create a Potential Energy Surface (PES)

This is an optional assignment but a good learning tool and programming project if you want to learn. Written by Jeremy Schroeder.

Description

I want you to create a potential energy surface for a H2O molecule. Below is a picture of what the lowest energy structure is for H2O. I want you to explore all possible structures of H2O to determine if this is truly the case.

Water Molecule Picture

Looking at the water molecule, there are 3 independent geometry variables that can change in the structure:

  1. The bond angle of H-O-H bond.
  2. The bond distance of H1-O.
  3. The bond distance of H2-O.

So to create an energy surface, we can keep one variable constant and change the other two. For example, we can change the bond distances H1-O and H2-O bond for a specific bond angle. For simplification of this assignment and ability to visualize a PES in 3d space, lets fix the bond distances to be equal to eachother. Therefore the two indepenendent variables for the PES are Bond Angle H-O-H and Bond Distance of both O-H bonds.

The ranges of each variable should be:

  • Bond angle - between 0-180°
  • Bond distances - betwen 0.25-2 Å

You can use a DFT program such as Turbomole, Gaussian 16 and Orca or you can use a lesser computationally expensive level of theory like XTB or MM as a calculator to calculate the single point energies.

Tasks

  1. Create a workflow using python or bash to strategically create structures, send the structures to the energy calculator and record the total energy value found from the calculator.
  2. Determine a simplified method to store the large amount of data retreived from the script.
  3. Use a graphical software like pyplot to graphically show the results and the PES.
  4. Identify the global minimum and local minima found.

Example

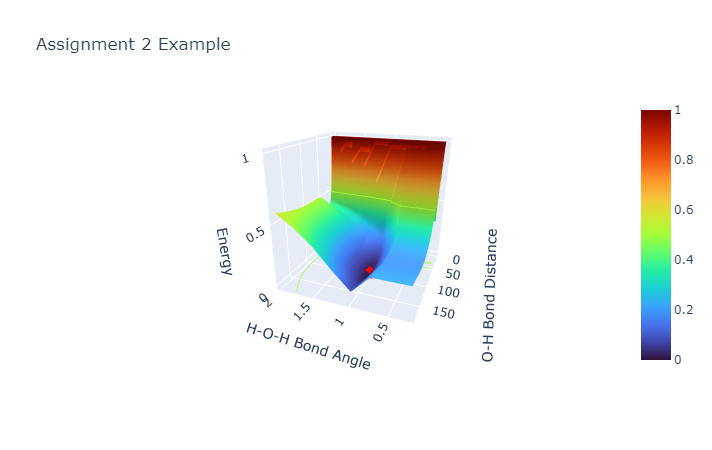

Below is a picture of an example PES that was generated for this project.

Example PES

Hints

If you need help, feel free to contact Jeremy. You should try to use XTB to save on computational resources and run it locally.
